Microsoft successfully tests emission-free hydrogen fuel cell system for data centres

The successful test has been described as a “moon landing moment” for the data centre industry
Pro
Image: Microsoft

29 July 2022

Microsoft has successfully tested a hydrogen fuel cell solution which could provide emissions free backup power for its data centres in the future.

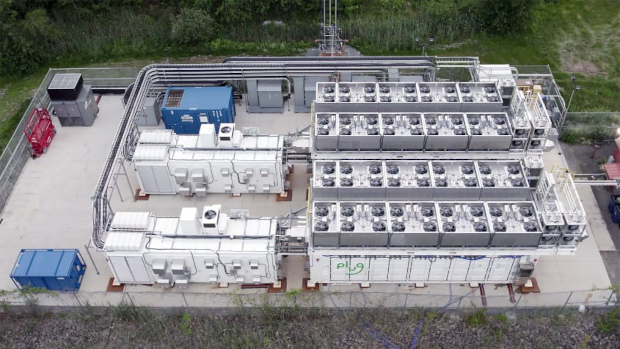

The successful test took place in in Latham, New York, and involved hydrogen fuel cells packed into a pair of 40-foot-long shipping containers in what Microsoft called a first-of-its-kind hydrogen generator, it revealed yesterday.

The tech giant explained that in data centres, backup generators are used infrequently, but they are critical if there’s a power outage. This is because they maintain uninterrupted power to the data centre and, therefore, service to customers.



advertisement





When these generators do run, they usually burn fossil fuels. However, as part of its pledge to be carbon negative by 2030, the tech giant has been exploring short and long term alternatives.

Long term, proton exchange membrane (PEM) fuel cell technology could be a viable solution to erase carbon emissions, according to Lucas Joppa, Microsoft chief environmental officer. PEM fuel cells combine hydrogen and oxygen in a chemical reaction, which generates electricity, heat, and water. There’s no combustion, particulate matters, or carbon emissions.

The PEM fuel cell test in Latham demonstrated the viability of this technology at three megawatts, the first time this has been achieved at the scale of a backup generator for a data centre. Microsoft believes that once green hydrogen is available and economically viable, this type of stationary backup power could be implemented across industries, from data centres to commercial buildings and hospitals.

“Three megawatts is super interesting because that’s the size of the diesel generators that we use right now,” Joppa said.

This is enough to power around 10,000 computer servers or 600 homes, and 10 times bigger than the system the company tested in Utah in 2018 at the National Renewable Energy Laboratory in Golden, Colorado.

Unfortunately, Microsoft found it difficult to source PEM fuel systems large enough to support three megawatts of energy. The tech giant instead decided to build the three-megawatt fuel system with engineers at Latham-based Plug, a pioneer in the commercial development of fuel cell and green hydrogen technologies.

The 125-kilowatt fuel cells – 18 of which are packed into each shipping container – are the largest the company has ever made, and the three-megawatt fuel cell system is Plug’s biggest application. Because the system is larger than anything built before, so too are all the components, from compressors and heat exchangers to grid-scale inverters and the pipes for hydrogen delivery.

The system was assembled piecemeal on a concrete pad behind the company’s headquarters for research, development, and manufacturing of its ProGen line of fuel cells.

“What we just witnessed was, for the data centre industry, a moon landing moment,” said Sean James, Microsoft’s director of data centre research. “We have a generator that produces no emissions. It’s mind-blowing.”

With the prototype testing complete and concept proven, Plug will now roll out an optimised commercial version of high-power stationary fuel cell systems that have a smaller footprint and a more streamlined and polished aesthetic than the one tested.

Microsoft will also install one of these second-generation fuel cell systems at a research data centre where engineers will learn how to work with and deploy the new technology, including the development of hydrogen safety protocols. The date of first deployment at a live data centre is unknown, though it will likely occur at a location where air quality standards prohibit diesel generators, said James.
